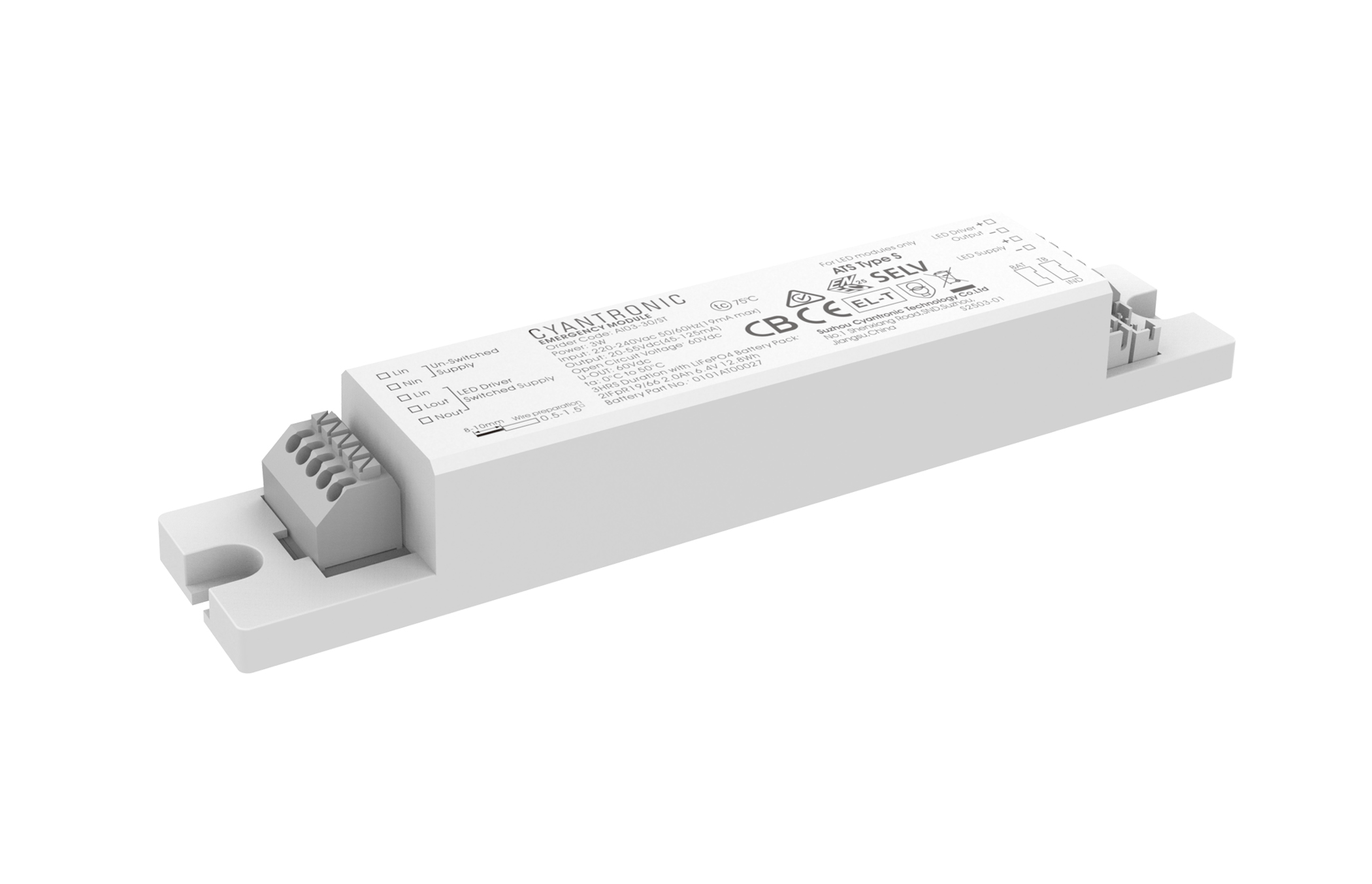

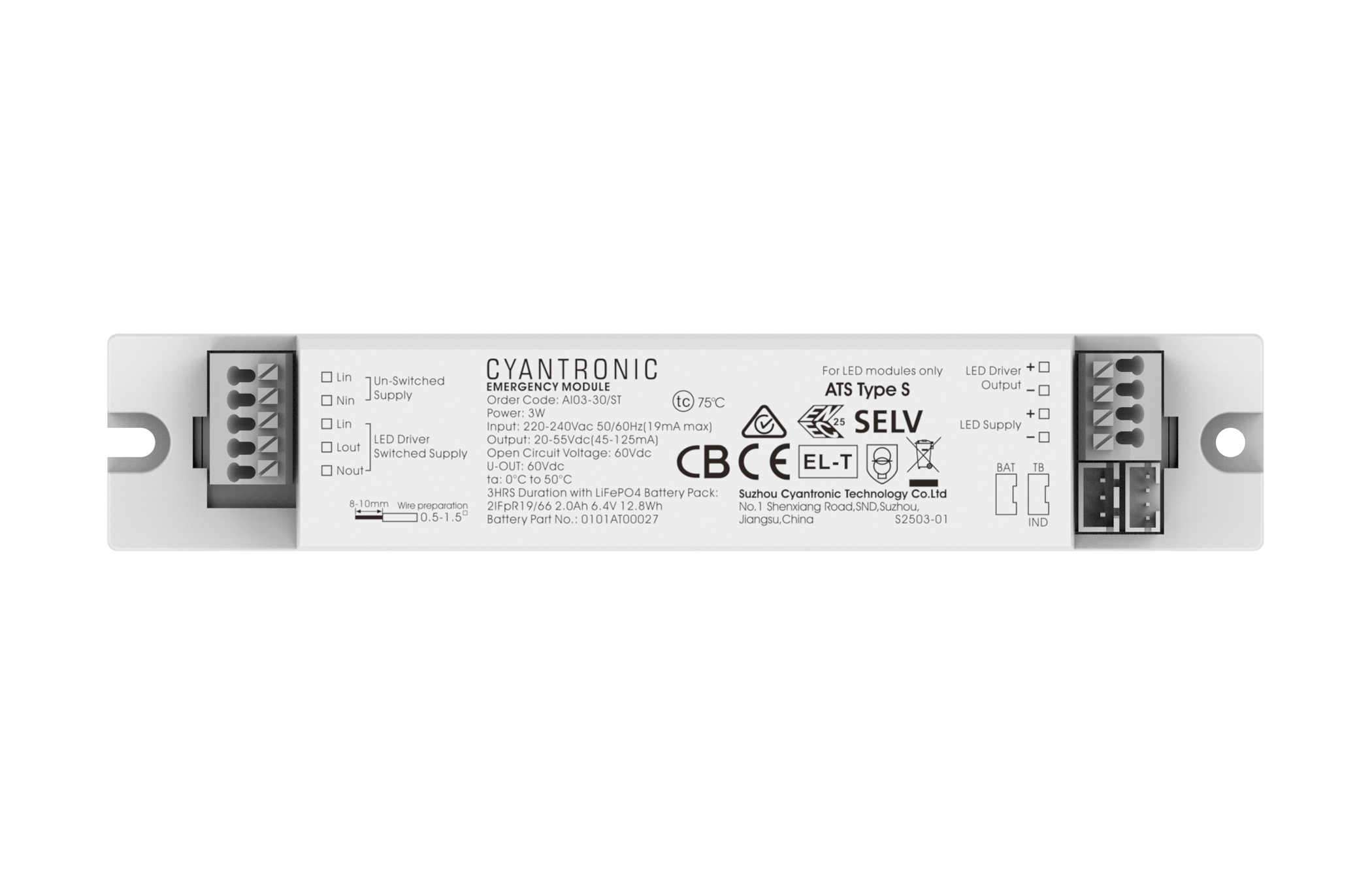

Internal Emergency Module for LED Luminaires

• For LED modules with a forward voltage of 20-55Vdc
• For maintained or non-maintained emergency lighting systems
• Conforms to EN 61347-1 and EN 61347-2-7

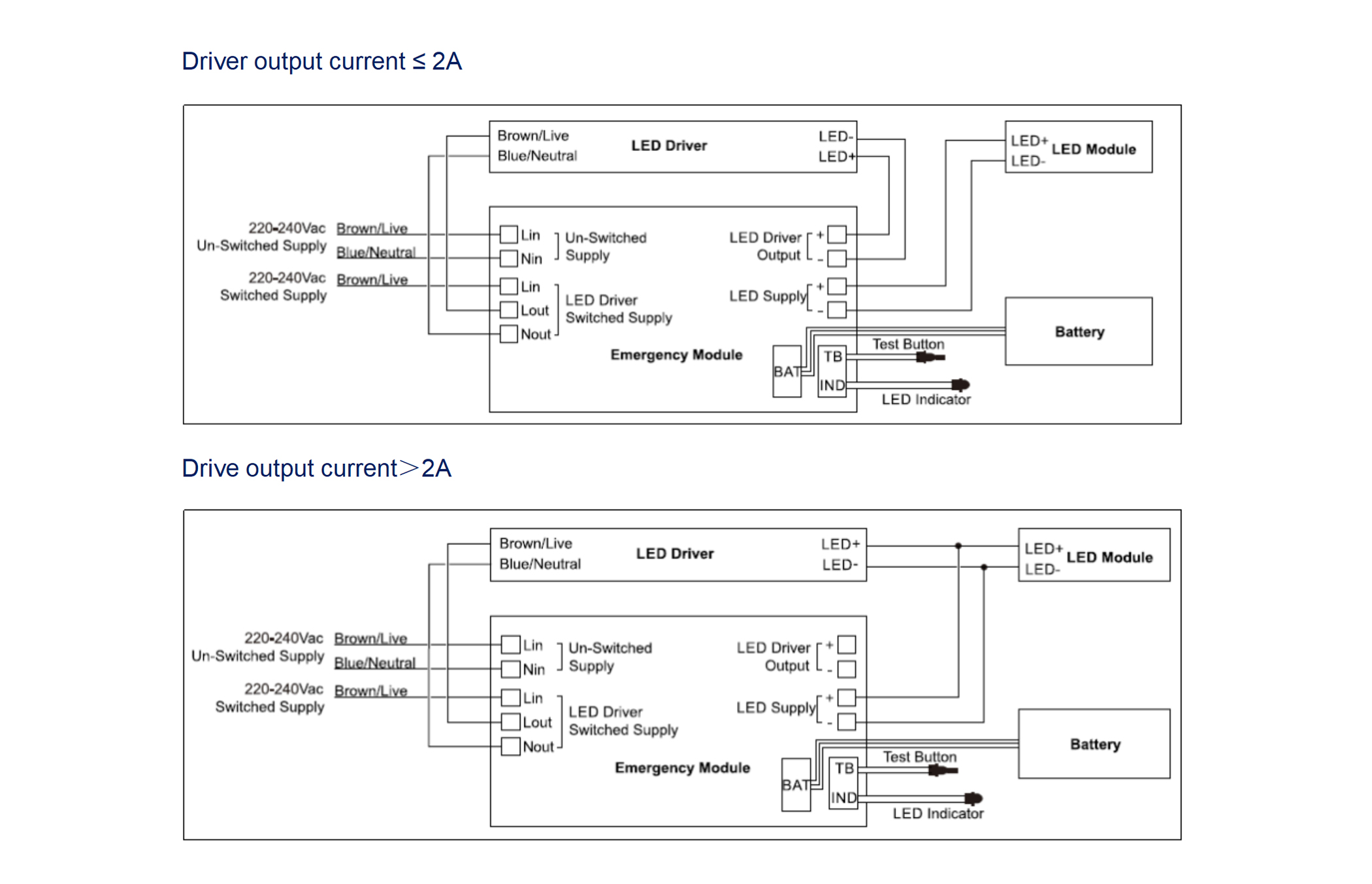

• Wired between LED driver and LED module via terminals
• Suitable for use in luminaires for high-risk task area lighting
• Voltage change-over threshold according to EN 60598-2-22
• 1.5 hours or 3 hours rated duration

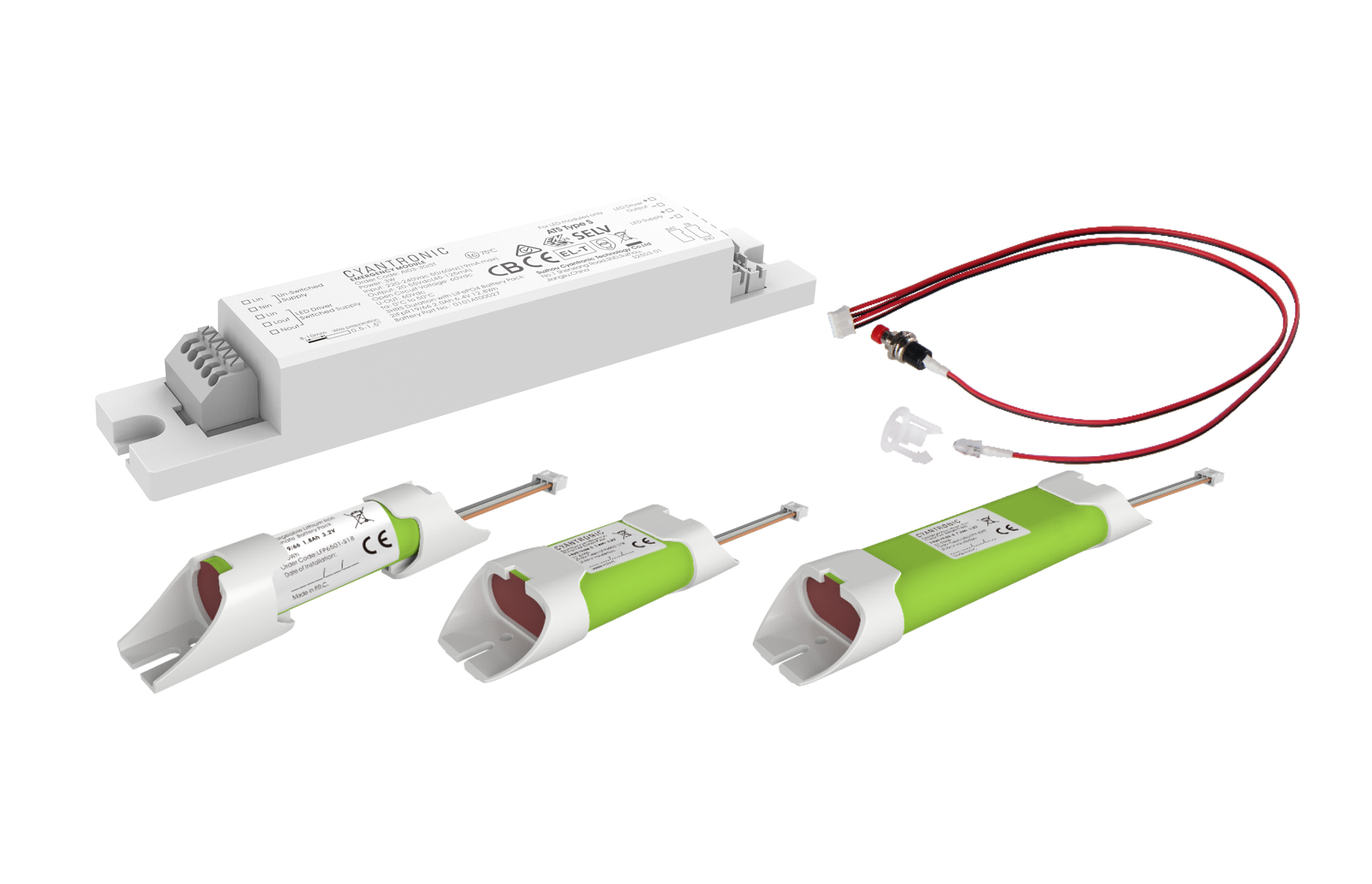

• LiFePO4 battery pack
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Green status LED indicator
• Constant power output
• For built-in
• Battery charging temperature control
