α-ni, Metal, DALI

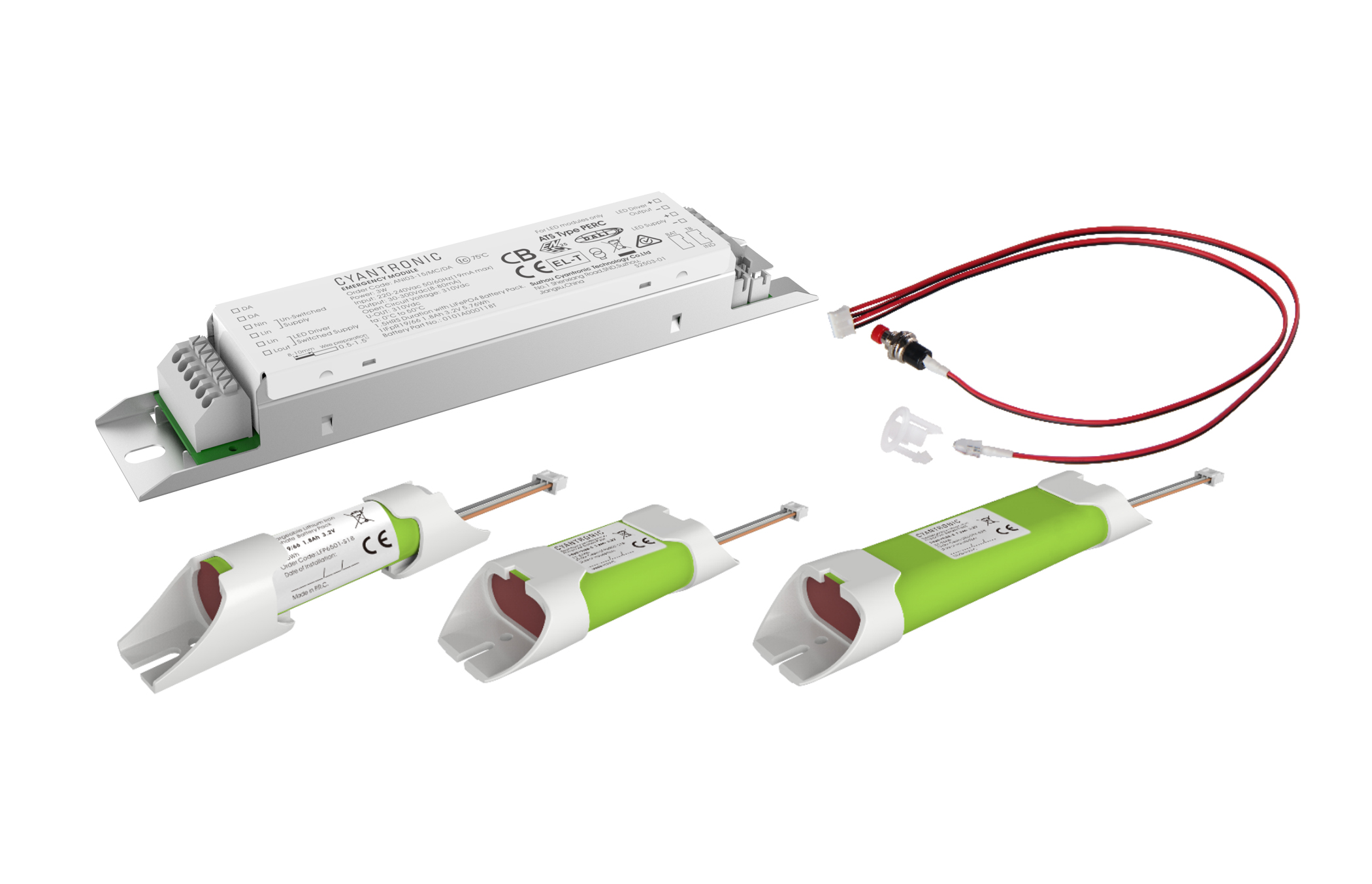

Internal Emergency Module for LED Luminaires

  • For LED modules with a forward voltage of 30-300Vdc
  • For maintained or non-maintained emergency lighting systems
  • Automatic Self-Test technologyconforming to EN 62034
  • DALI conforming to EN 62386-101,EN 62386-102, EN 62386-202
  • Conforms to EN 61347-1 and EN 61347-2-7

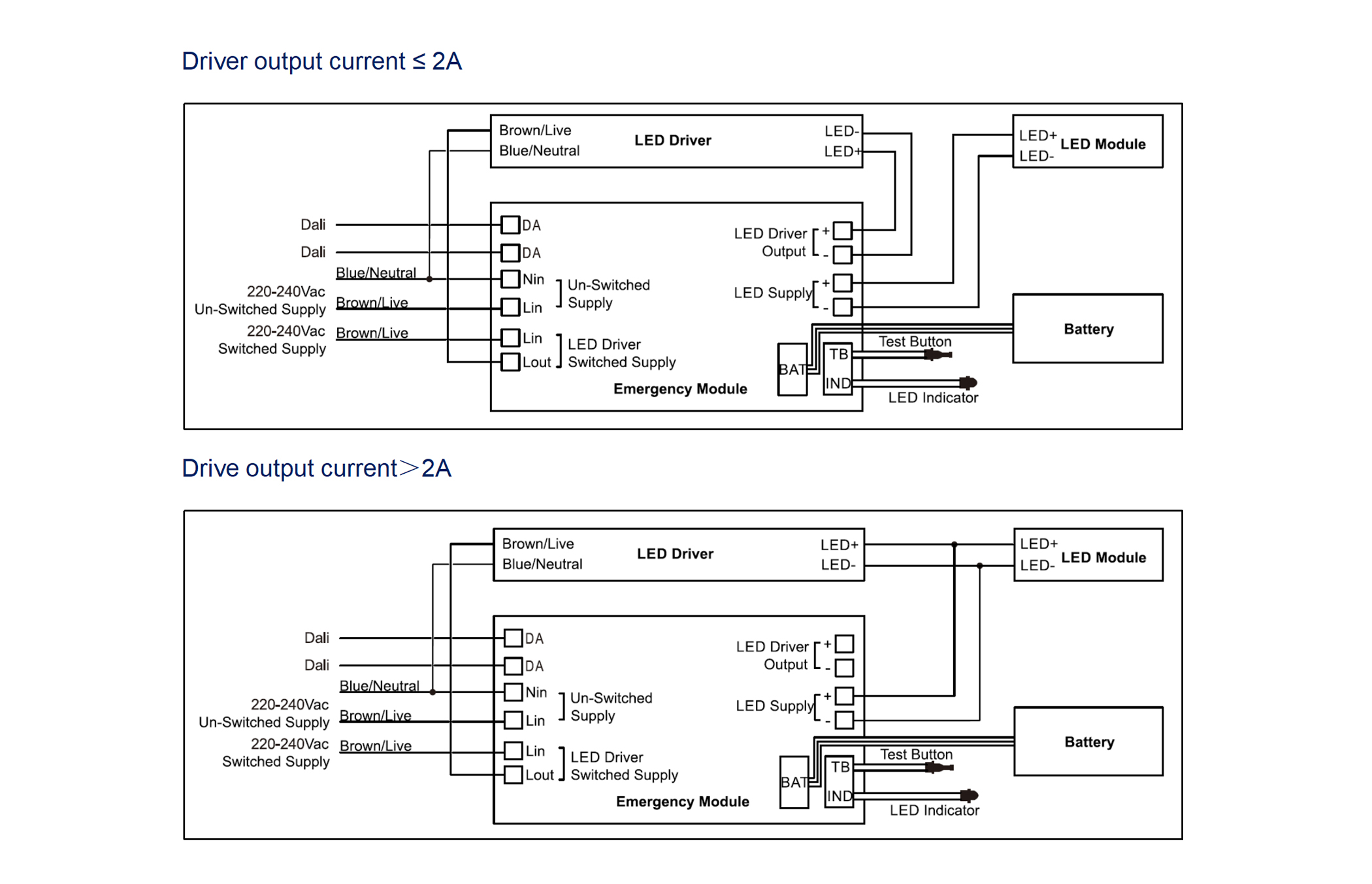

  • Wired between LED driver and LED module via terminals
  • Suitable for use in luminaires for high-risk task area lighting
  • Voltage change-over threshold according to EN 60598-2-22
  • 1.5 hours or 3 hours rated duration
  • LiFePO4 battery pack
  • Over-charge, over-current, short-circuit and deep discharge protection for battery
  • Bi-coloured status LED indicator
  • Weekly function test and yearly duration testas factory default
  • Constant power output
  • For built-in
  • Battery charging temperature control
