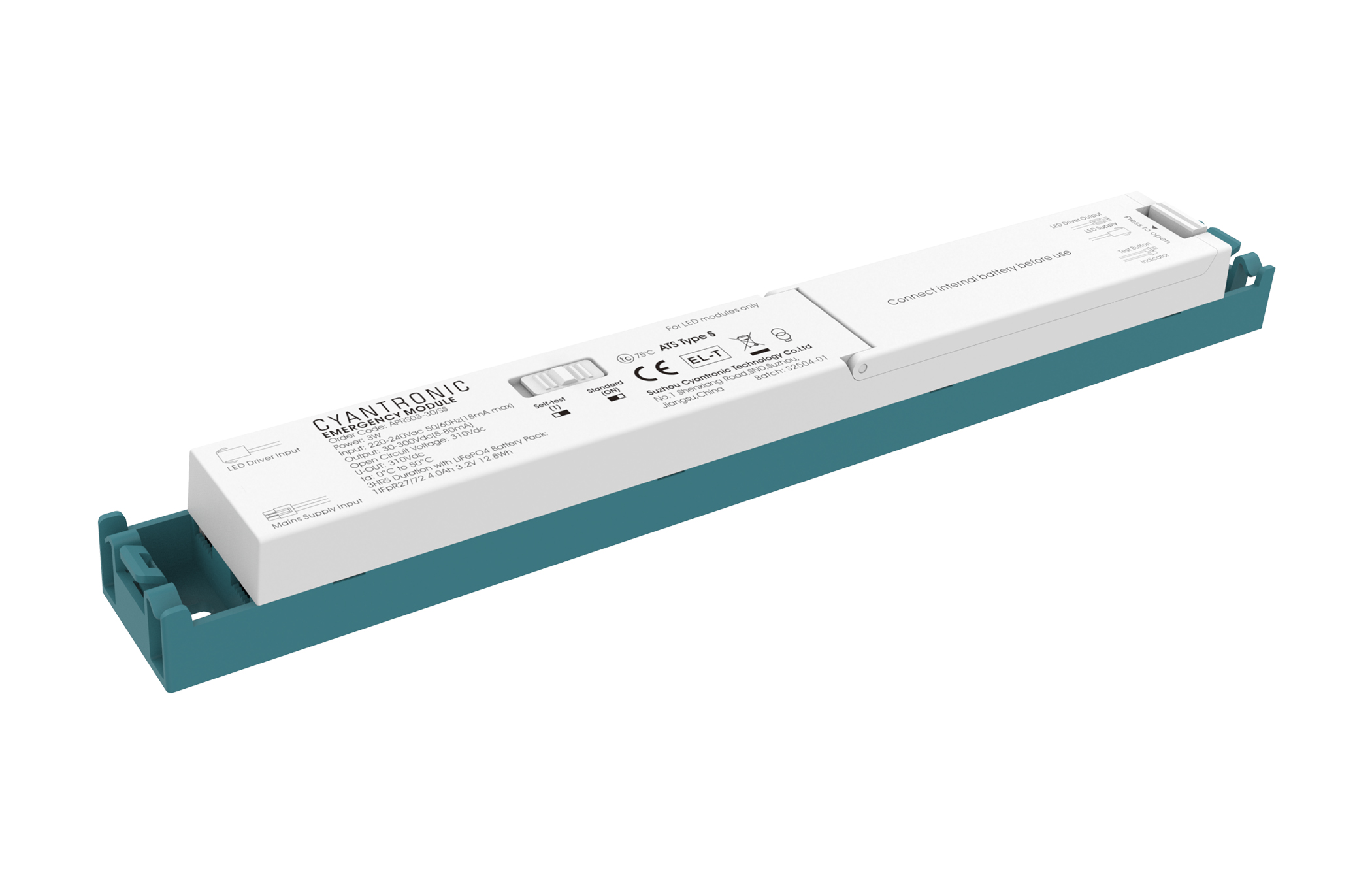

Internal Emergency Module for LED Luminaires

• To set manual or self-test mode via the DIP switch
• Double-press test button to change duration test interval (26weeks/52weeks)
• For maintained or non-maintained emergency lighting systems
• Automatic Self-Test technology conforming to EN 62034
• Conforms to EN 61347-1and EN 61347-2-7

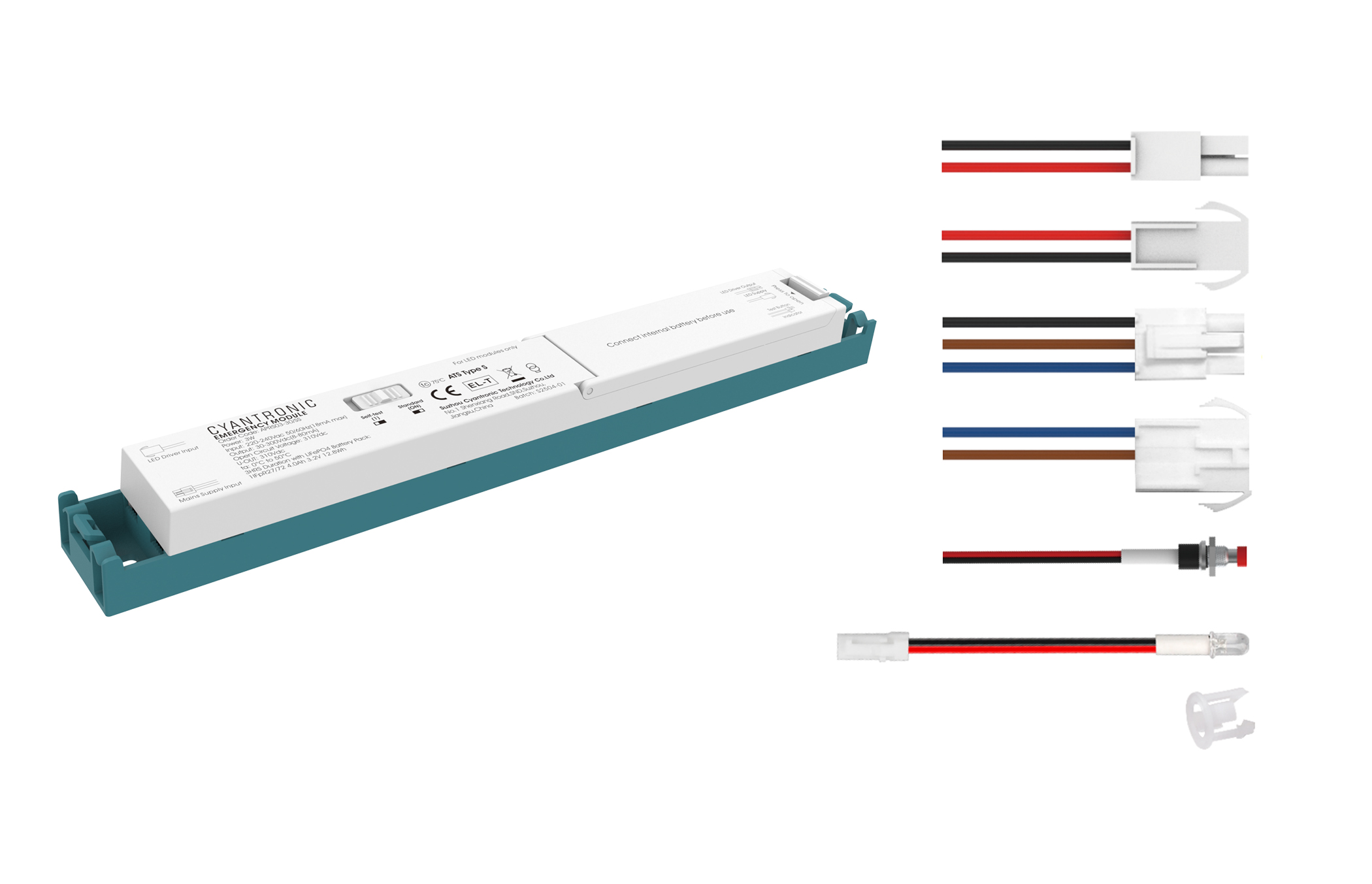

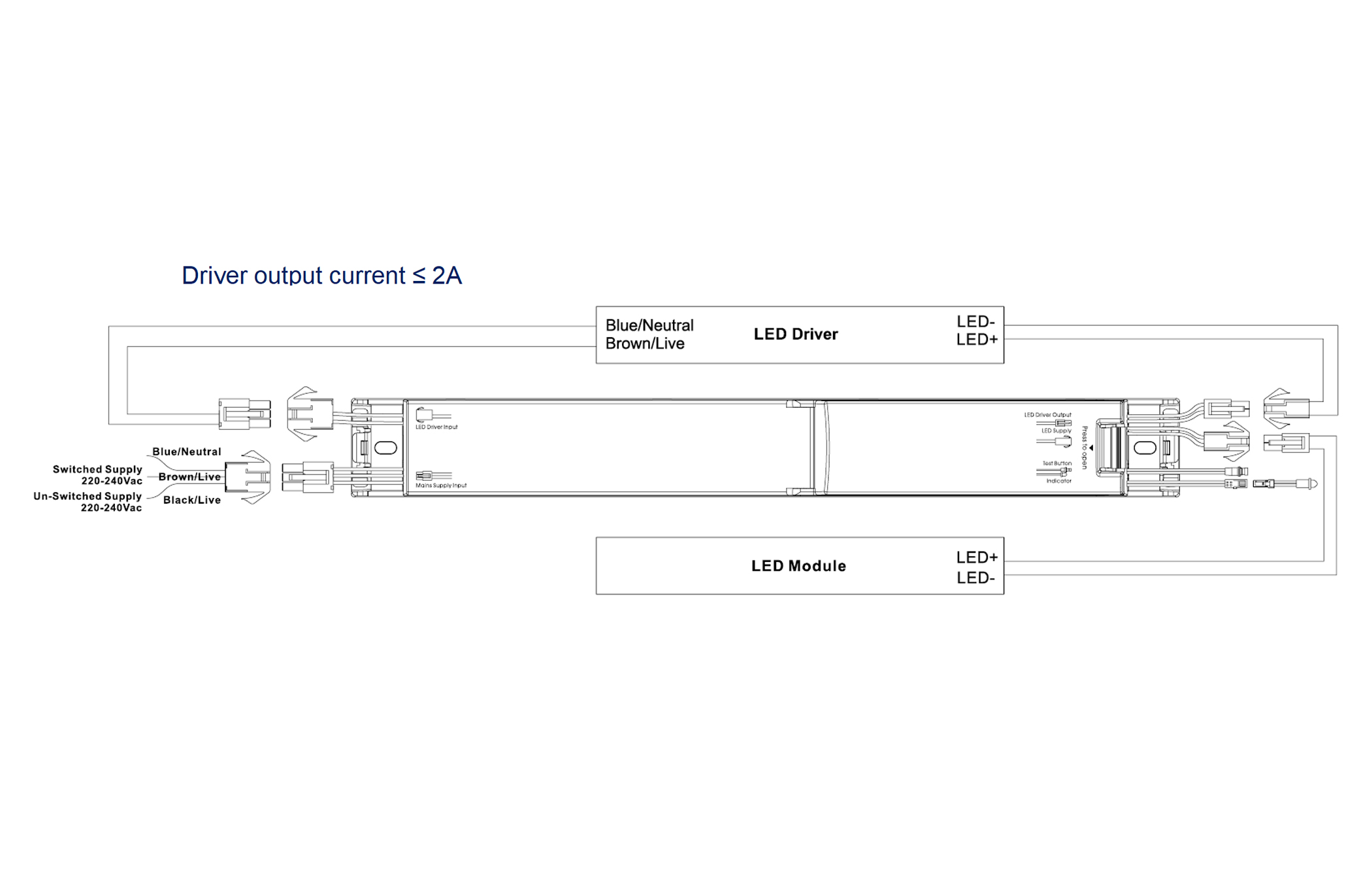

• Wired between driver and LED module via wiring leads with connector
• Suitable for use in luminaires for high-risk task area lighting
• Voltage change-over threshold according to EN 60598-2-22
• 1.5 hours or 3 hours rated duration
• Replaceable internal LiFePO4 battery pack
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Bi-coloured status LED indicator
• Weekly function test and yearly duration test for self-test mode
• For built-in
• Battery charging temperature control
