External Emergency Module for LED Luminaires

• For luminaires with class III LED modules and separate LED drivers
• For maintained or non-maintained emergency lighting systems
• DALI conforming to EN 62386-101, EN 62386-102, EN 62386-202
• Automatic self-test technology conforming to EN 62034
• Conforms to EN 61347-1 and EN 61347-2-7

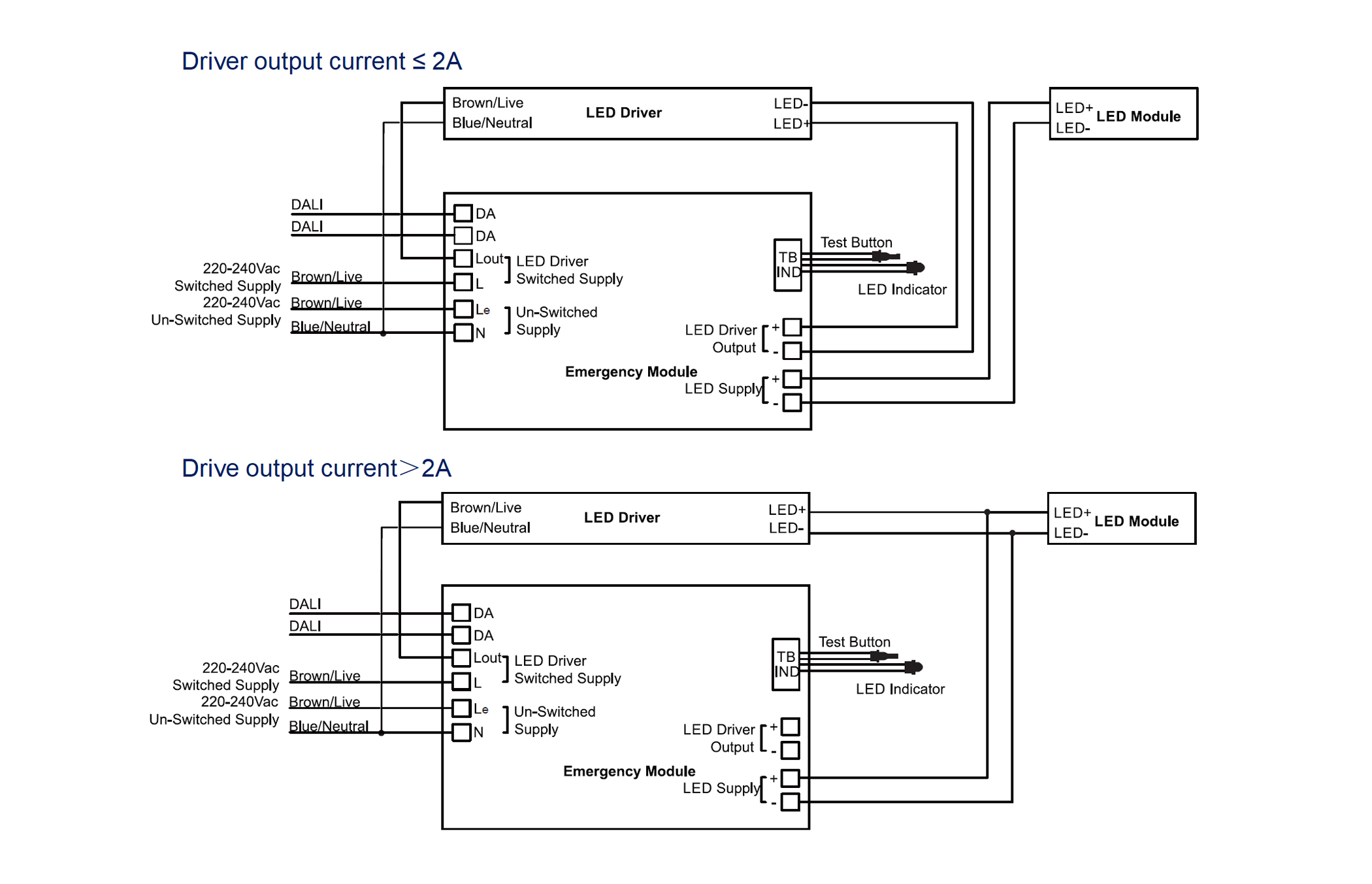

• Wired between driver and LED module via wiring leads with connector
• Suitable for use in luminaires for high-risk task area lighting
• Voltage change-over threshold according to EN 60598-2-22
• 3 hours rated duration
• Replaceable internal LiFePO4 battery pack
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Bi-coloured status LED indicator
• Weekly function test and yearly duration test as factory default
• Constant power output
• For independent
• Battery charging temperature control
