External Suspended / Surface Mounted Plug-in Emergency Module

• For High Bay/Low Bay Luminaires with LED supply connector
• For LED modules with a forward voltage of 30-300Vdc
• For maintained or non-maintained emergency lighting systems
• Automatic self-test technology conforming to EN 62034
• DALI conforming to EN 62386-101, EN 62386-102, EN 62386-202
• Conforms to EN 61347-1 and EN 61347-2-7

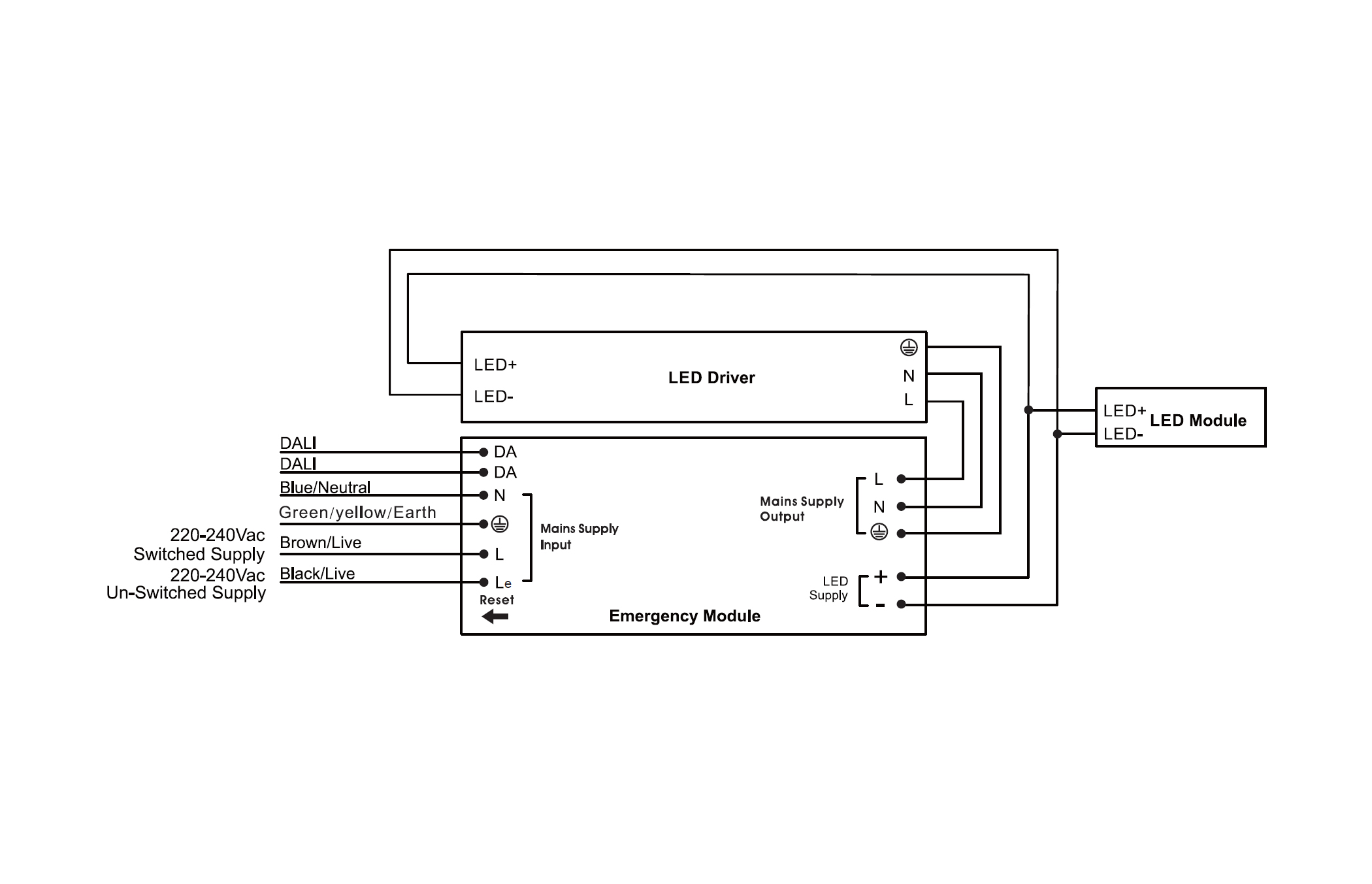

• Wired between LED module and emergency module via water-proof connector
• Suitable for use in luminaires for high-risk task area lighting
• Voltage change-over threshold according to EN 60598-2-22
• 1.5 hours or 3 hours rated duration
• Built-in non-replaceable LiFePO4 battery pack
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Built-in bi-coloured status LED indicator
• Weekly function test and yearly duration test as factory default
• IP65
• Optional suspended or surface mounted
• For independent
• Battery charging temperature control
