External Suspended / Surface Mounted Plug-in Emergency Module

• Triple-press test button to change test mode (manual/self-test)
• Double-press test button to change duration test interval (26weeks/52weeks)
• For High Bay/Low Bay Luminaires with LED supply connector
• For LED modules with a forward voltage of 30-300Vdc
• For maintained or non-maintained emergency lighting systems
• Automatic self-test technology conforming to EN 62034
• Conforms to EN 61347-1 and EN 61347-2-7

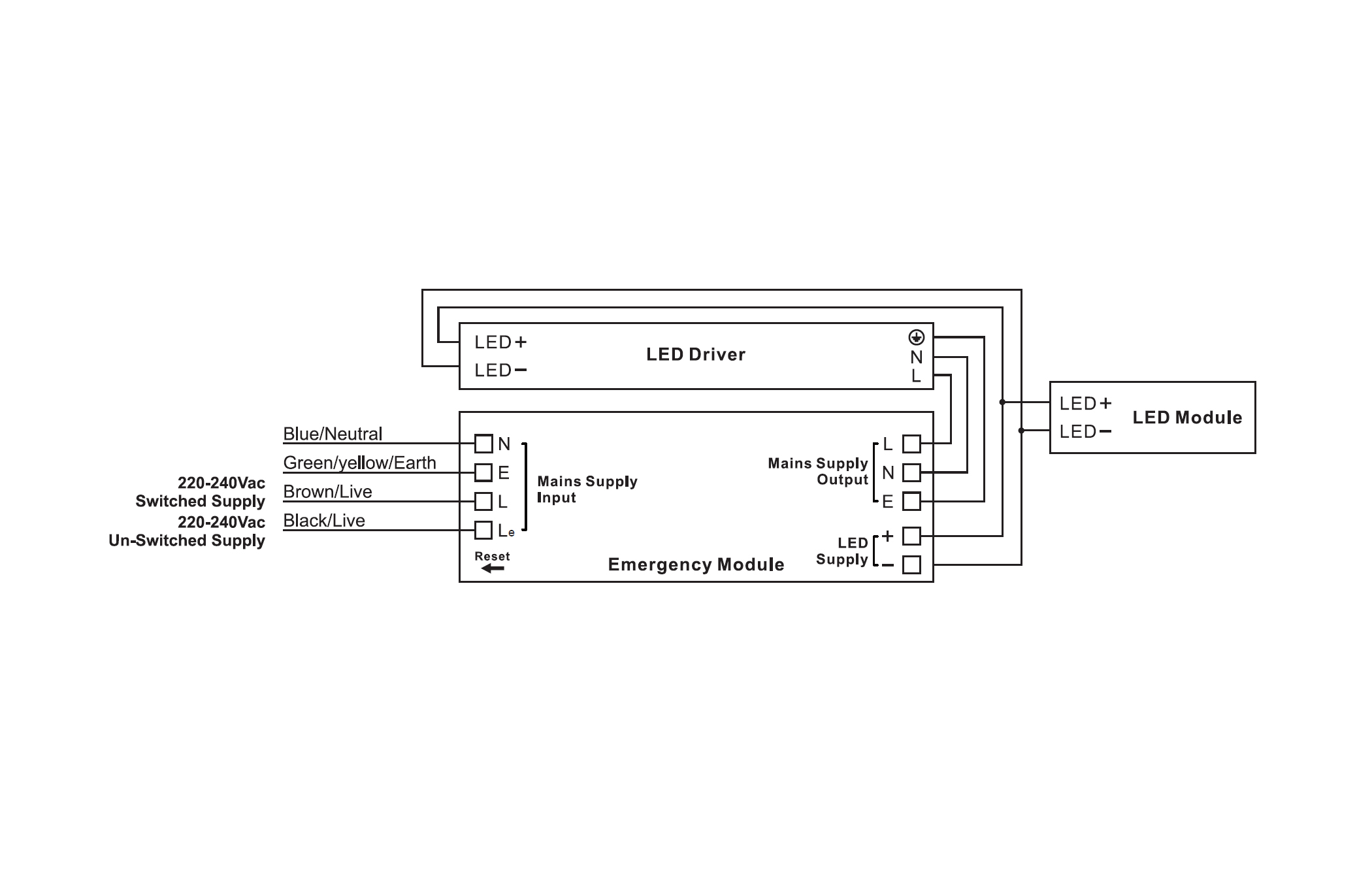

• Wired between LED module and emergency module via water-proof connector
• Suitable for use in luminaires for high-risk task area lighting
• Voltage change-over threshold according to EN 60598-2-22
• 1.5 hours or 3 hours rated duration
• Replaceable internal LiFePO4 battery pack
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Bi-coloured status LED indicator
• Weekly function test and yearly/semi-yearly duration test for self-test mode
• IP65
• Optional suspended or surface mounted
• For independent
• Battery charging temperature control
